GPU Waterblock Nvidia 2080Ti

169,90

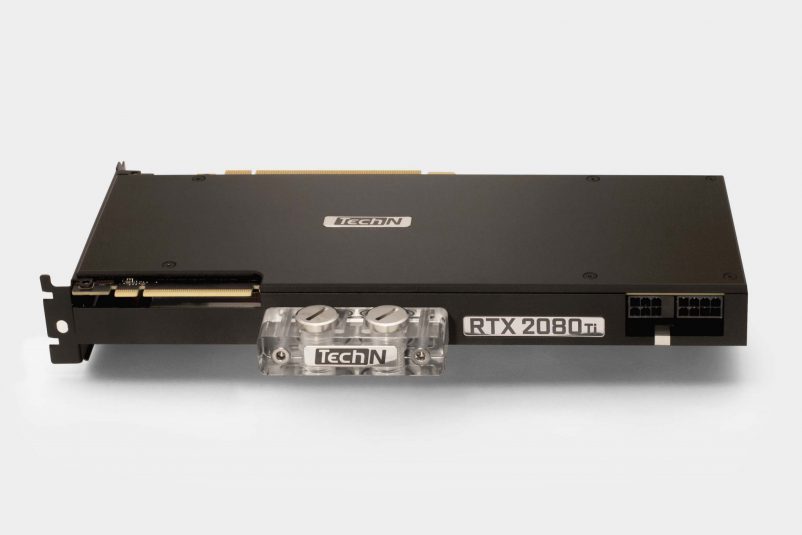

TN GPU Waterblock RTX 2080 Ti Black/Silver is a GPU full coverage water block designed for Nvidia’s GeForce RTX 2080 Ti graphics cards using Nvidia’s reference PCB design.

We will inform you when the product arrives in stock, enter your E-mail:
SKU: TN GPU WB RTX 2080 Ti Category:
Home » Shop » Waterblock-GPU » GPU Waterblock 2080Ti



The high-performance, full cover GPU water block for NVIDIA’s GeForce RTX line from TechN. It comes in a sleek, innovative design with no visible screws on the block itself. Together with our backplate it encases the whole graphics card.

The water block base is CNC machined from highly pure copper and then electroless nickel plated for a superb finish and stain resistance. All critical components of the graphics card are cooled with our innovative, low resistance hydraulic flow design. The top cover is made of extruded aluminum which is milled an anodized – available in a silver and black finish. The fine copper fins over the GPU chip, in combination with our optimized water flow deliver class-leading cooling performance.

The water block comes with a 4-pin 12V RGB LED strip which is compatible with all major motherboard manufacturers.

Included:

  • TN GPU Waterblock RTX 2080 Ti
  • Thermal Interface Material: Thermal Compound – Arctic MX-2 0,75g & Pre-applied thermal PADS
  • Sealing plugs G1/4’’ BSPP for unused threads
  • Mounting accessories
  • Installation Manual
 Fittings are not included

Water block with G¼“ connector

Water block with G¼“ connector

User manual

2 Screws M3x6mm

15 Plastic washers

13 Screws M3x4mm

Thermal paste

Thermal paste

Thermal pads

Thermal pads (preinstalled)

2 Nuts M3










Optional:

An optional full coverage aesthetic backplate is also available for this Waterblock to improve the passive cooling on the backside of the circuit board.



Specifications:

Material: copper (nickel plated), acrylic (transparent), aluminium (anodized)
Dimensions: (LxWxH) : 265mm-10.43” x 125mm-4.92” x 27mm-1.06”
Weight: approx. 1091g-38oz (without packaging)
Sealing: EPDM 70 (max 120°)
Threads: 4x G1/4’’ (DIN ISO 228-1)
Leak Tested 2 Bar-29PSI (water pressure in your system max 0,5 bar)
GPU Serie: NVIDIA GeForce® RTX™ 2080 Ti (reference design)
LED: yes
Lighting colour: RGB
LED connections: RGB (4-Pin 5050 12VGRB)



Orders usually shipped within 48h.



EAN: 4260491550507 – BLACK – P/N: 00000197
EAN: 4260491550514 – SILVER – P/N: 00000196
